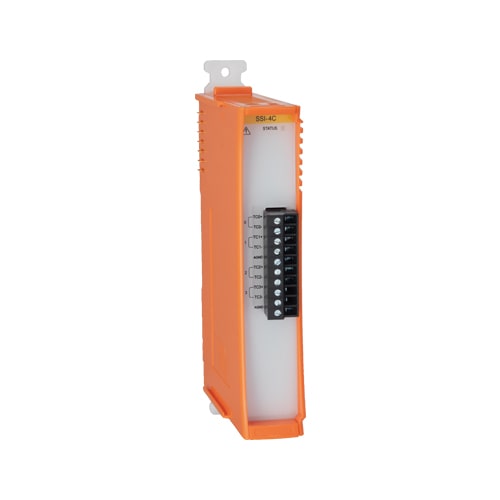

CPS-SSI-4C

Overview / Features

This product is an expansion I/O module that adds a thermocouple interface to the CPU unit of the CONPROSYS series. Four channels of differential inputs are provided for one module.

• Compatible with various types of thermocouple inputs
  • This product is compatible with a wide range of thermocouple input types such as J(IEC60584-1), K(IEC60584-1), E(IEC60584-1), N(IEC60584-1), R(IEC60584-1), S(IEC60584-1), and T(IEC60584-1).
• Cold junction compensation function within
  • As cold junction compensation is integrated in the product, there is no need to install a temperature sensor for cold junction compensation externally, and temperature can be measured simply by connecting a thermocouple.
• Adaptable to a wide range of temperature between -20 to 60°C (-4°F to 140°F)
  • The product is capable of operating in the temperature between -20 to 60°C (-4°F to 140°F). It can be installed in the various environments.

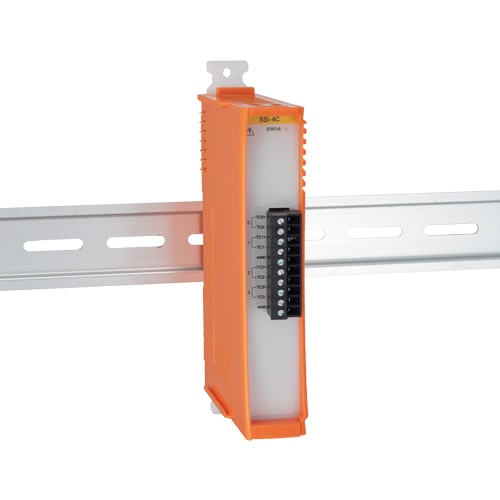

• Installation easy with two pieces of terminal support and DIN rail
  • You can install and remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also is removable along the side rails, replacing is simple and easy as well.
• Equipped with the LED for an operation check
  • The product has LED for an operation check, which helps you visually confirm the communication status of each interface.
• No electrolytic capacitor
  • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
