CPS-SSI-4P

Overview / Features

This product is an extension module to collect temperature data with a platinum resistance thermometer of Pt100, and operates along with the CPU module stack type controller of our CONPROSYS series. Up to four channel temperature can be measured by one module.

• Platinum resistance thermometer compliant with IEC/JIS standard
  • Platinum resistance thermometer compliant with IEC/JIS standard – You can use the platinum resistance thermometer (Pt100, JPt100) that is comply with IEC/JIS standard. Allowing connection with the platinum resistance thermometer through Three-wire or Four-wire
• Compact Design
  • Compact design, 25.2 (W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
• Adaptable to a wide range of temperature between -20 and +60°C
  • Adaptable to a wide range of temperature between -20 and +60°C – The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

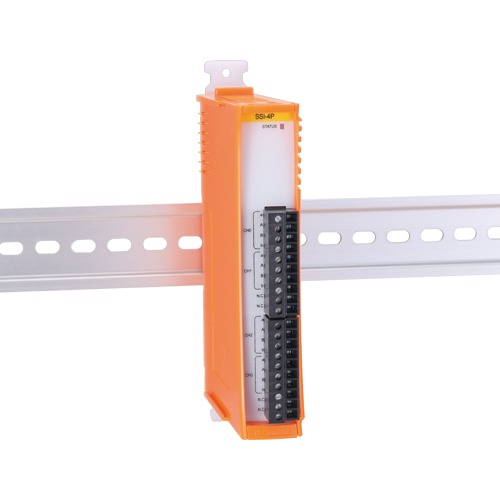

• Installation easy with two pieces of terminal support and DIN rail
  • Installation easy with two pieces of terminal support and DIN rail – You can remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also be removable along the side rails. Replacing is simple and easy.
• Equipped with the LED for an operation check
  • Equipped with the LED for an operation check – The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
• No electrolytic capacitor
  • No electrolytic capacitor – Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.

See more details of M2M/IoT Solution CONPROSYS Series
