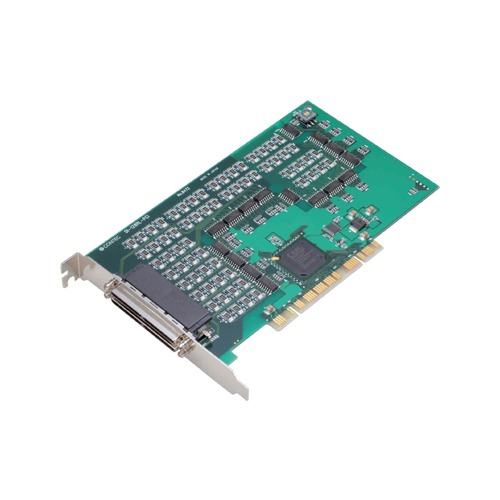

DI-128RL-PCI

  • Opto-coupler isolated input (compatible with current source output signals)
  • Opto-coupler bus isolation
  • You can use 16 input signals as interrupt request signals.
  • Windows/Linux compatible driver libraries are attached.
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.

Data Sheet PDF

SKU: DI-128RL-PCI Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a negative-common typed PCI bus-compliant interface board used to provide a digital signal Input function on a PC. This product can input digital signals at 12 – 24VDC. This product features 128 opto-coupler isolated inputs (compatible with current source output signals). You can use 16 input signals as interrupt inputs. Equipped with the digital filter function to prevent wrong recognition of input signals is provided. Windows/Linux driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries.

  • Opto-coupler isolated input (compatible with current source output signals)
    • This product has the opto-coupler isolated input 128 channels (compatible with current source output signals) whose response speed is 200µsec. Common terminal provided per 16channels, capable of supporting a different external power supply. Supporting driver voltages of 12 – 24 VDC for input
  • Opto-coupler bus isolation
    • As the PC is isolated from the input interfaces by opto-couplers, this product has excellent noise performance.
  • You can use 16 input signals as interrupt request signals.
    • You can use 16 input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt.
  • Windows/Linux compatible driver libraries are attached.
    • Using the attached driver library API-PAC(W32) makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
    • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
    • Using the dedicated library VI-DAQ makes it possible to make a LabVIEW application.

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Short Size
Used Connector 2x 0.8mm-pitch 100-pin (Female)
Digital I/O
Input Channels 128-ch
Output Channels –
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) –
Operating Voltage (Input) 12 to 24VDC
Operating Voltage (Output) –
Input Circuit Opto-isolated input (for source current output)
Output Circuit –
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
DI-128RL-PCI Digital input PCI card 128ch (negative-common isolated 12 – 24VDC)
  • CE marking
  • FCC compliant
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
VI-DAQ VI Library of data acquisition for LabVIEW
Cable
Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector
Terminal
Item Item Name
DTP-3A Screw Terminal (M3 x 37)
DTP-4A Screw Terminal (M2.6 x 37)
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)
Other Accessories
Item Item Name
CCB-96 Connector conversion card
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
