SPF14SQ1700

Overview / Features

This product is a 19-inch rack-mount industrial-use PC that supports the 6th (Skylake) and 7th generation (Kaby Lake) of Intel® Core ™ series and contains the Q170 chipset. In addition to a wide range of interfaces, expansion slots of PCI bus×9, PCI Express (x16) bus×1, and PCI Express (x8) ×1 bus are equipped. The product adopts a highly reliable Japan-made power supply (mfd. by Nipron). Furthermore, in the 6th generation (Skylake), Windows 7 can be selected as the OS, so it is also recommended for replacing the system developed exclusively for Windows 7.Solution-ePC is an industrial-use computer that offers BTO (Build to Order) specifications to suit the requests of customers.Only carefully selected components offering high reliability and stable supply are used, making the product suitable for industrial use.Various selections and options are available to meet customer requests, including OS, CPU, memory, and storage options.This product is in compliant with the following standards: CCC*1, CE, FCC, KC*2 and VCCI.

• *1The CCC certified models are only applicable to the configurations with the storage disk installed.
• *2Please refer to the data sheet and the reference manual of SPF14SQ1700 to find the configuration of KC certificate.

• Compatible with Intel® Core™ processor series Skylake/Kaby Lake
  • Available with a power-saving, high-performance 6th- or 7th-generation Core processor for advanced computation and drawing performance while minimizing power consumption.
• Supports pre-installation of Windows 7 Pro and WES 7
  • If you select the 6th generation (Skylake) CPU, it is possible to use Windows 7 Pro and WES 7 as the OS. It makes you inherit the assets developed under Windows 7 environment.
    • *Microsoft’s support period for Windows 7 has been ended on January 14, 2020. After the support period, you are no longer receive all support, including regular security updates and paid support.

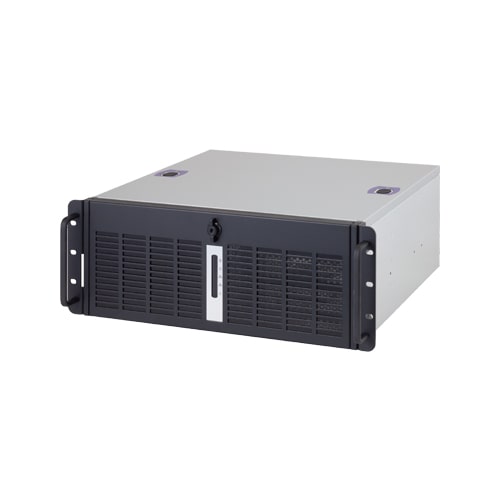

• 19-inch rack-mountable housing
  • The product dimensions are [430mm(W)x465mm(D)×174.8mm(H)] and designed to be mounted in a 19 inch rack.

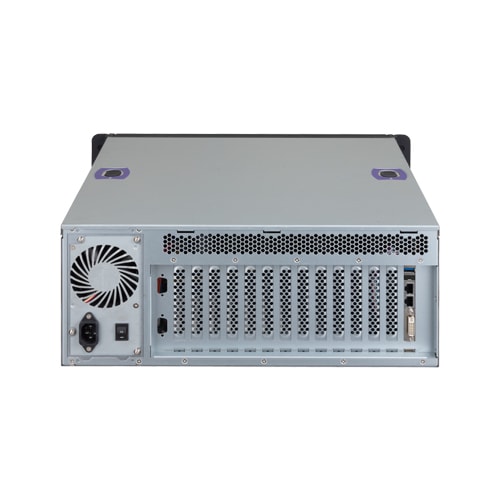

• Expandable up to 11 slots of PCI and PCI Express
  • Take advantage of PCI x9, PCI Express (x16) x1, and PCI Express (x8) x1 (x4 signal) bus expansion slots.
• Rich variety of interfaces for freely expandable peripherals
  • It has a variety of extended interface such as PCI Express (x16) x1 slot, PCI Express (x8) (x4 signal) x1 slot, PCI x9 slots, DVI-I x1, 1000BASE-T x2, USB3.1 Gen1 (USB3.0) x8 (Max.), serial (RS-232C) x2 (Max.), serial (RS-232C/RS422A/RS-485) x2 (Max.).
• Reliable, Japan-made power supply
  • The power supply an essential component of the product is made in Japan for superior reliability and system performance.
