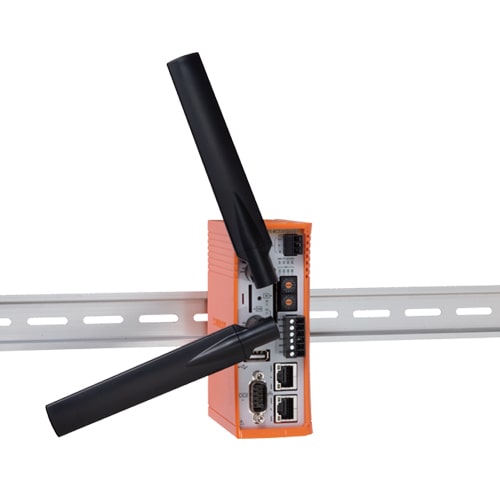

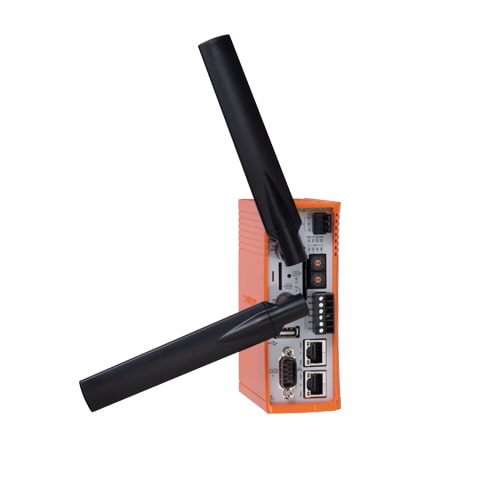

CPS-MCS341G5-DS1-130_img1CPS-MCS341G5-DS1-130_img1

CPS-MCS341G5-DS1-130

  • Certification of 4G LTE Cat.4 standard
  • Configurative modules
  • No base board required
  • Web Monitoring and Web Task Script
  • Simple router function
  • Web Monitoring
SKU: CPS-MCS341G5-DS1-130 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a M2M controller with isolated digital input and output (Input : 4ch, Output : 4ch), RS-232C, LAN interface, Ethernet Hub, and a 4G LTE wireless network communication module. The devices of our CONPROSYS series can be configured as you desire. You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.
This product is equipped with an OPC UA server function ※, and can directly communicate with HMI and SCADA software that supports OPC UA clients provided by each company.
※ Can be used only with Ethernet communication, and does not support 4G / 3G and 920MHz wireless communication.

  • Certification of 4G LTE Cat.4 standard
    • Following the regulation by the Radio Act, this products transmits the collected data to the cloud server through 4G LTE wireless communication network.
  • Configurative modules
    • You can set the modules as you desire up to 16 devices. The total current consumption of the configurative devices should be less than 3.3A.
  • No base board required
    • This product does not require a base board to install or connect. It helps set and remove the module(s) easily and smoothly.
  • Web Monitoring and Web Task Script
    • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser.By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operation can be completed on the Web browser.
  • Simple router function
    • Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.
  • Web Monitoring
    • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser.

Specifications

Specifications
Controller Unit
Series CONPROSYS M2M Controller
Communication Ports Ethernet (LAN); 4G LTE Wireless (WAN)
Programming CONPROSYS VTC
Stack bus CONPROSYS stack
Function Data transfer (https); FacilityView data transmission; Modbus/TCP slave; MTConnect Adapter/Agent; OPC UA server
Digital I/O
Input Channels 4-ch
Output Channels 4-ch *Share with inputs
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) 2msec (max.)
Operating Voltage (Input) –
Operating Voltage (Output) –
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Semiconductor relay output
Built-in Power Supply 12VDC
Analog I/O
Input Channels –
Input Range –
ADC Resolution –
Sampling Rate –
Input Buffer Memory –
Output Channels –
Output Range –
DAC Resolution –
Update rate –
Output Buffer Memory
Counter
Number of Channels –
Counting System –
Response speed –
Serial Comm.
Number of Channels 1x RS-232C [ASYNC]
Transmission Speed 300 ~ 115,200bps
Isolation Property –
Transmission Method RS-232C [Asynchronous]

Ordering Informations

Ordering Information
Model Description Certification
CPS-MCS341G5-DS1-130 CONPROSYS M2M Controller – Configurable Type / 4G LTE / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
  • TELEC
  • VCCI
Options
Sensor Input
Item Item Name
CPS-SSI-4C Thermocouple Module CONPROSYS I/O Module / 4ch
CPS-SSI-4P Pt100 Temperature Sensor Input CONPROSYS I/O Module / 4ch(0.01°C 5s/s) / Bus Isolation
Analog I/O
Item Item Name
CPS-AI-1608ALI Analog Input CONPROSYS I/O Module / 8ch(16bit 50ks/s) / Bus Isolation
CPS-AI-1608LI Analog Input CONPROSYS I/O Module / 8ch(16bit 100ks/s) / Bus Isolation
CPS-AO-1604LI Analog Output CONPROSYS I/O Module / 4ch(16bit 50ks/s) / Bus Isolation
CPS-AO-1604VLI Analog Output CONPROSYS I/O Module / 4ch(16bit 100ks/s) / Bus Isolation
Digital I/O
Item Item Name
CPS-DI-16L Digital input CONPROSYS I/O module 16ch (isolated 12 – 24VDC)
CPS-DI-16RL Digital input CONPROSYS I/O module 16ch (negative-common isolated 12 – 24VDC)
CPS-DIO-0808BL Digital I/O CONPROSYS I/O module 8ch/8ch (12VDC on-board power supply isolated 12 – 24VDC)
CPS-DIO-0808L Digital I/O CONPROSYS I/O module 8ch/8ch (isolated 12 – 24VDC)
CPS-DIO-0808RL Digital I/O CONPROSYS I/O module 8ch/8ch (negative-common isolated 12 – 24VDC)
CPS-DO-16L Digital output CONPROSYS I/O module 16ch (isolated 12 – 24VDC)
CPS-DO-16RL Digital output CONPROSYS I/O module 16ch (negative-common isolated 12 – 24VDC)
CPS-RRY-4PCC Relay output CONPROSYS I/O module 4ch ( – 240VAC / – 24VDC)
Counter
Item Item Name
CPS-CNT-3202I Counter CONPROSYS I/O module 2ch (32bit Up/Down count 500kHz) / Incremental encoder interface / Isolated
Serial comm.
Item Item Name
CPS-COM-1PC Serial Communication CONPROSYS I/O Module RS-232C 1ch / Isolation and Surge Protection
CPS-COM-1PD Serial Communication CONPROSYS I/O Module RS-422A/485 1ch / Isolation and Surge Protection
CPS-COM-1QL LoRa Stack Module
CPS-COM-2PC Serial Communication CONPROSYS I/O Module RS-232C 2ch / Isolation and Surge Protection
CPS-COM-2PD Serial Communication CONPROSYS I/O Module RS-422A/485 2ch / Isolation and Surge Protection
Measuring instrument
Item Item Name
CPS-MM-LC Insulation Deterioration Monitoring CONPROSYS I/O Module / 1ch (Earth leakage measurement) / Bus Isolation
Cable
Item Item Name
CPS-CAB-S01 Cables to connect the FANUC CNC and the CONPROSYS series CNC communication support controller(s).
CPS-CAB-S02 Cable to connect the MITSUBISHI CNC and the CONPROSYS series CNC communication support controller.
Power Supply / AC Adapter
Item Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
Antenna
Item Item Name
CPS-ANT-R5-01 External 4G LTE Antenna for CONPROSYS series (Japan only)
Storage
Item Item Name
SD-4GB-A 4GB SD Card
Other Accessories
Item Item Name
CPS-PAV-AES1-JP EnOcean wireless sensor for CONPROSYS controllers / Stack indicator monitoring set (Only for Japan market)
